Adjustable Concealed Floating Shelf Bracket

Adjustable Concealed Floating Shelf Support Bracket For concealed mounting of shelves,with screw mounting plate, For minium shelf thickness 24 mm
Sold Indervidually

Supplied with

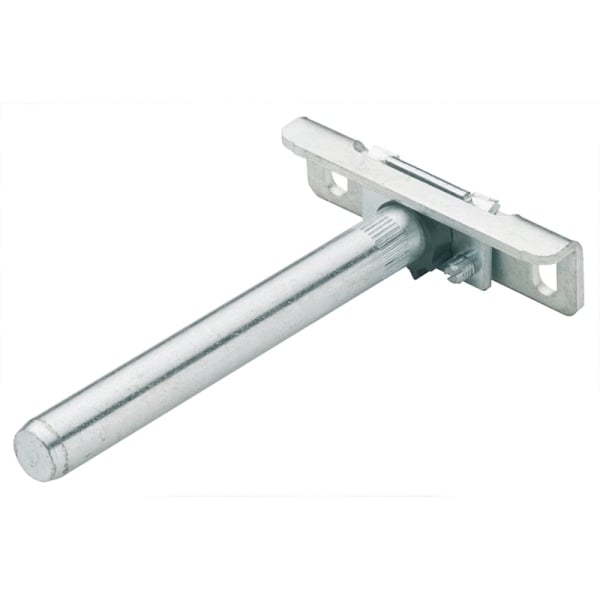

1x Supporting pin with mounting plate, galvanized steel
1x Pre-mounted plastic sleeve
2x Adjusting screws for inclination adjustment

Distance between Brackets: Max. distance between two shelf supports: 700 mm

Supporting pin with knurled section is installed in a Ø 12 mm hole in the shelf, the pin may be exposed or concealed depending on the thickness of the shelf
Height adjustable via slots
Inclination adjustment using adjusting screws which press on the rear plate when turned in
Lateral adjustment by lifting the supporting pin; can be adjusted to the right or left

Adjustment facility: Tilt adjustment: via adjusting screwsHeight adjustment: via slots in screw-on plateSide adjustment: sliding via slot ±3 mm For shelf thickness ≥24 mm
Colour/finish: zinc plated
Version: With screw-on plate and eccentric sleeve
Area of application: For concealed installation
Material: Steel

Installation:
For screw fixing to support element
For mounting in drilled hole in shelf
For installation into woodwork or masonry walls
